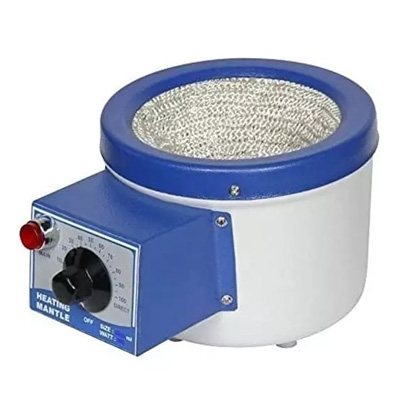

Heating Mantle

Technical Specifications

• Temperature Range: Ambient to 350° C
• Temperature Control: Energy Regulator
• Heating Element: Nichrome wire heating element
• Heating Type: Uniform hemispherical heating
• Inner Insulation: Ceramic fiber insulation
• Outer Body Material: Powder-coated Mild Steel
• Mantle Material: Woven fiberglass cloth for high-temperature resistance
• Temperature Accuracy: ±2°C to ±5°C
• Power Supply: 220–240 V AC, 50 Hz, single phase
• Distillation, reflux, solvent evaporation, chemical synthesis, and laboratory heating of round-bottom flasks.

Capacity Available :

• 250 ml
• 500 ml
• 1000 ml (1 L)
• 2000 ml (2 L)
• 3000 ml (3 L)
• 5000 ml (5 L)
• 10000 ml (10 L)
